VOC exhaust gas treatment control system

prevnext

Look at all the big picture

VOC exhaust gas treatment control system

Product name:VOC exhaust gas treatment control system
Industry:Environmental protection industry
Product locationr:Shanghai Municipality
Processing location:AiXun workshop
Drawing data:Design and draw according to process control requirements and BOM list of environmental protection industry.

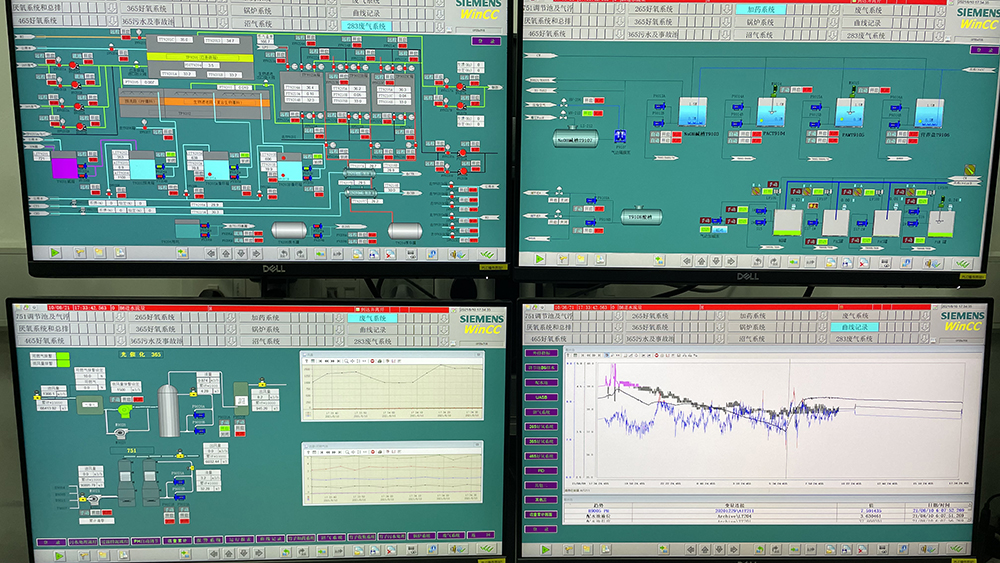

Control mode:Control cabinet field manual control mode and remote PC control mode.

inquiry

Detail Intruduction

Configuration

· Schneider Low Voltage Electric;

· ABB inverter;

· Siemens S7-1500PLC;

· Siemens IO module;

·Weidmuller signal isolator;

·Switching power supply;

·Others: Far East cable, Mingmelt fuse, etc.;

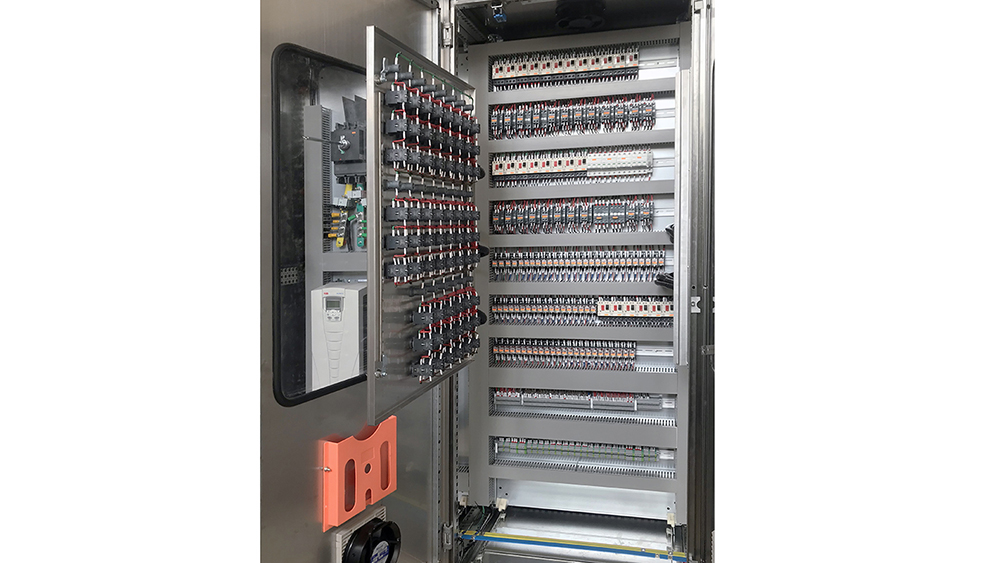

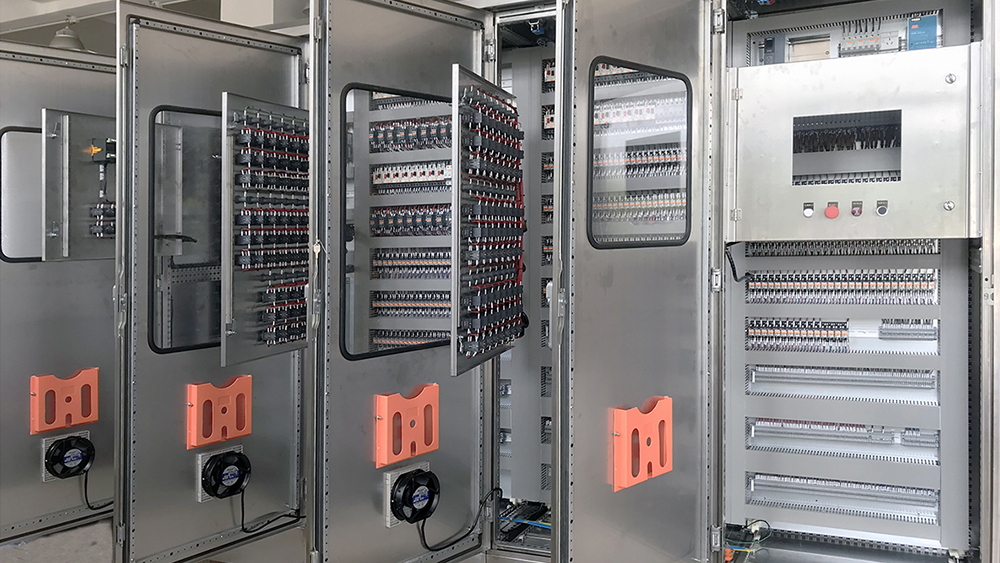

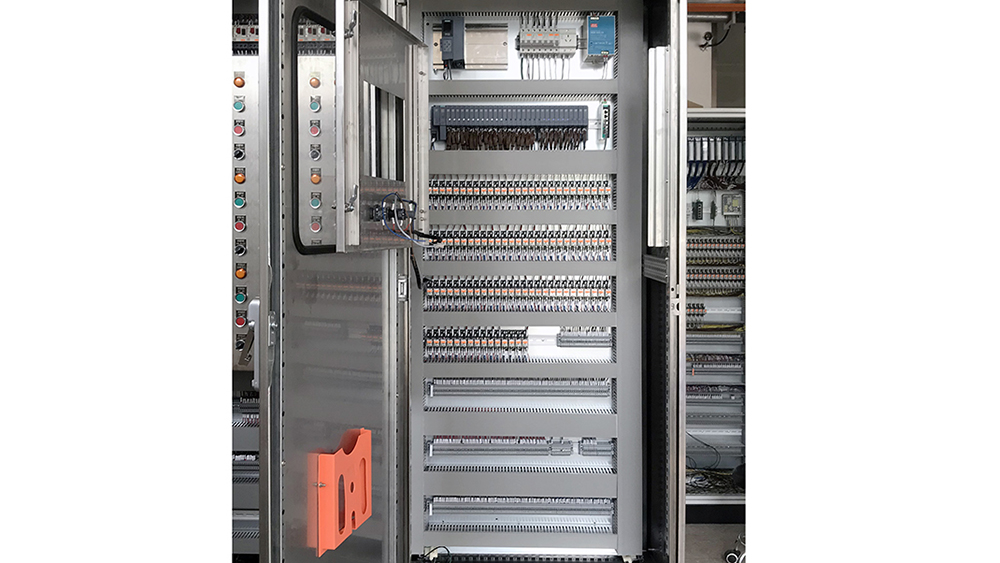

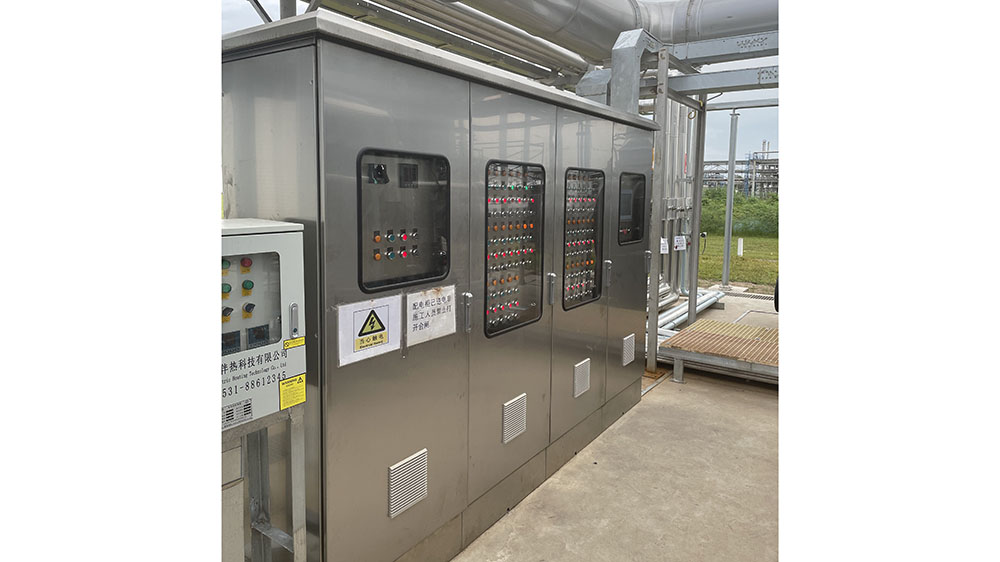

Real shot products

Parameter

Product Brand	AI XUN	Production time	May 2021
Product Name	VOC exhaust gas treatment control system	Product Number	WXAX2105-006
Product Material	Carbon steel	Product Packaging	crate
Product Color	Customizable	Customized Quantity	4

electrical control panel (6)

electrical control panel (7)

electrical control panel (8)

electrical control panel (9)

electrical control panel (10)

Function

VOC exhaust gas treatment PLC control system is an automatic control system developed by Wuxi Ixun Automation for exhaust gas equipment. VOCK control system hardware can be operated with AB, Siemens, GE and other medium and large PLCS as control hardware, and different control system solutions can be customized according to different waste gas treatment equipment

Product characteristics

Case material:Carbon steel;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: VOC exhaust gas treatment control system

Keywords: electrical control panel AI XUN PLC
