Explosion-Proof Pneumatic Solenoid Valve Control Cabinet

Industry Field: Chemical industry
Application: Suzhou China
Manufacturer: Aixun
Date: Jan. of 2019
Drawing Information: According to the solenoid valve cabinet process control requirements and BOM, adopt CAD software design
Function: Remote control, stainless steel pipe connection in the control cabinet, Solenoid valve and housing with explosion-proof function, voltage: 24VDC;
Control: Remote DCS control
inquiry
  • Detail Intruduction

Configuration

· ASCO Explosion-proof solenoid valve;

· ASCO air filter regulator;

· ASCO Pressure meter;

· Weidmuller terminal blocks;

· Stainless steel bulkhead union;

· Stainless steel joints and other accessories;

· Stainless steel labels;

· High quality stainless steel pipe;

· Explosion-proof cable gland;

· Carbon steel explosion-proof housing;

· Other: High quality auxiliary materials.

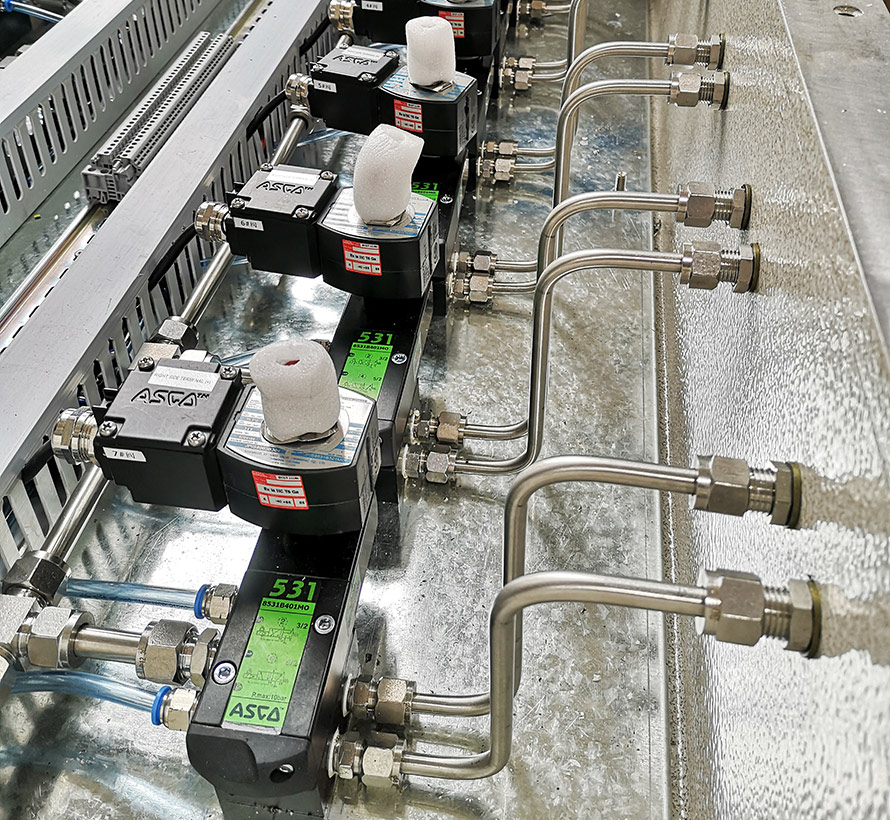

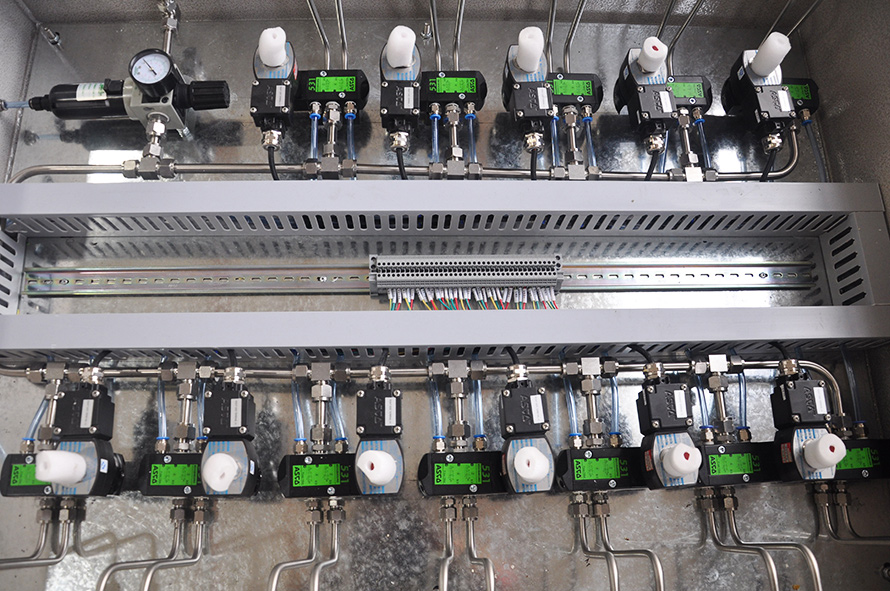

Real shot products

Parameter

Product Brand AI XUN Custom Processing ODM/OEM
Product Name Explosion-Proof Solenoid Valve Control Cabinet Product Number AXDCF-003
Product Material 304 Stainless Steel Product Packaging Wooden Box
Product Color Customizable Customized Quantity 2
Explosion-Proof Pneumatic Solenoid Valve Control Cabinet
Explosion-Proof Pneumatic Solenoid Valve Control Cabinet

Product characteristics

1. Housing material Carbon steel explosion-proof housing with powder painting
Housing thickness : 2mm
Color :RAL7035

2. Manufacturing standards According to the technical requirements

3. Quality standard GB/T19001-2016/ISO9001:2015

Purchase: Explosion-Proof Pneumatic Solenoid Valve Control Cabinet

  • *
  • *
  • *
