Instrument/Metertesting Cabinet

Industry Field: Chemical Industry
Application: Suzhou of Jiangsu province China
Manufacturer: Aixun
Date: Nov. of 2018
Drawing Information: according to the process control requirements and list of BOM, adopt CAD software design.

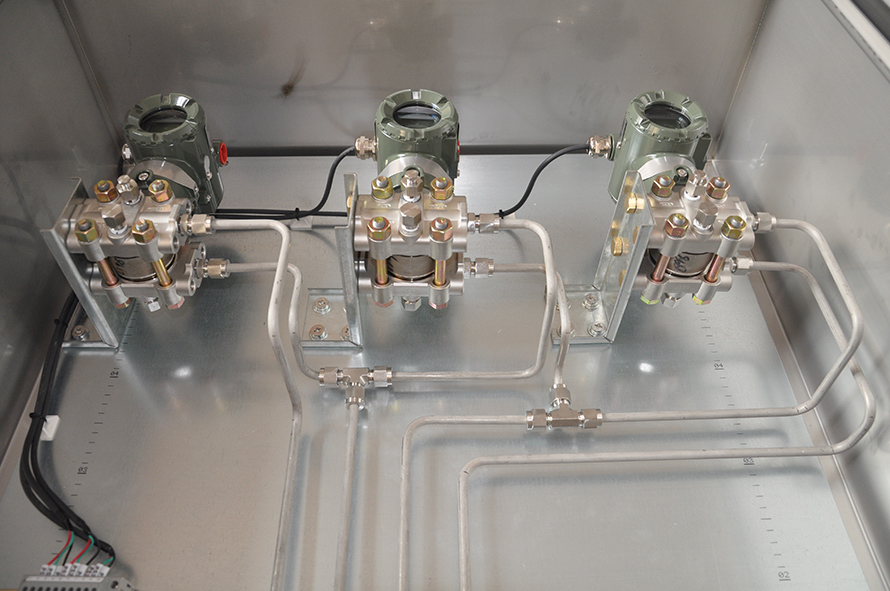

Function: differential pressure transmitter monitoring differential pressure value of equipment on site, the transmitter far transmit the signal, used in explosion proof area.
Control: 4-20mA

inquiry

Detail Intruduction

Configuration

· Dwyer differential pressure transmitter;

· Dwyer explosion proof housing;

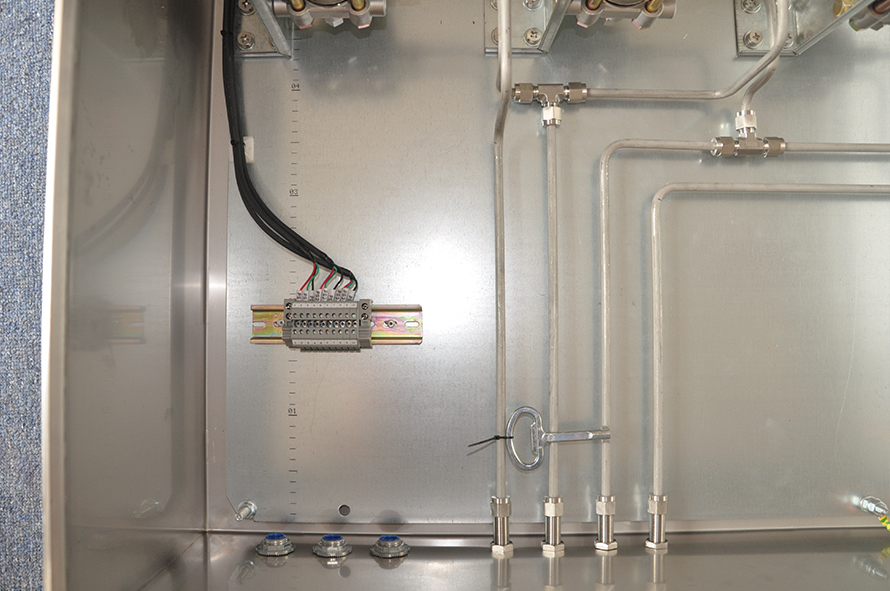

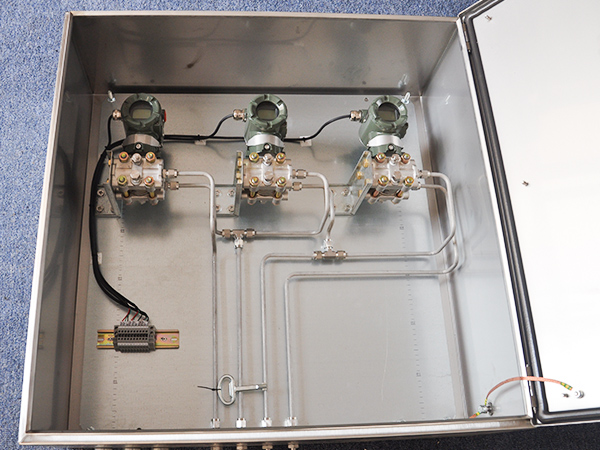

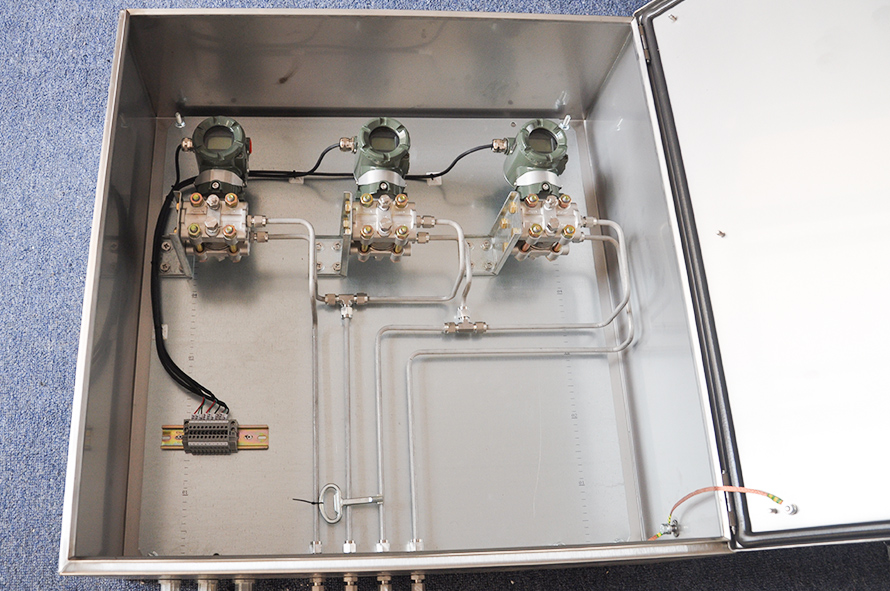

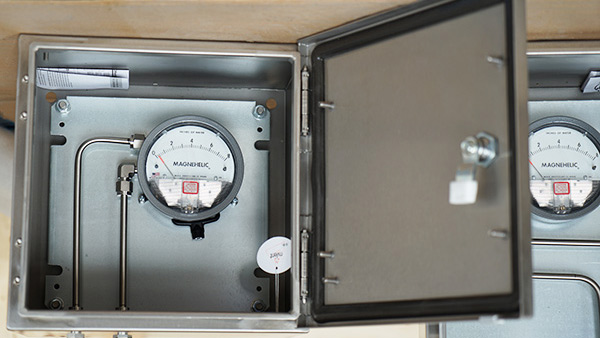

Real shot products

Parameter

Product Brand	AI XUN	Custom Processing	ODM/OEM
Product Name	Instrument/Metertesting Cabinet	Product Number	AXYB-002
Product Material	Aluminum Alloy	Product Packaging	crate
Product Color	RAL7035	Customized Quantity	1

Product characteristics

Housing material: aluminum ally;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: Instrument/Metertesting Cabinet

Keywords: Metertesting Cabinet AI XUN

Product Center

Pneumatic valve Control Cabinet & panel ; Solenoid valve cabinet

Bus Valve terminal Control Cabinet

Instrument Testing Control Cabinet

Automatic Equipment Control Cabinet

Other Products

Products

: Valve terminal Control cabinet for pharmaceutical system raw liquid equipment

Product name:Valve terminal Control cabinet
Industry: Biopharmaceutical industry
Product locationr:Hubei Province
Processing location:AiXun workshop
Information: drawings in accordance with the requirements for process control and BOM list, using CAD software to design drawings.
Control mode: local valve plate manual button control, DCS upper computer communication control

: On-line monitoring and control system for chemical industry

Product name:On-line monitoring and control system for chemical industry
Industry:chemical industry
Product location:Wuxi, Jiangsu Province
Processing location:AiXun workshop
Drawing data:According to the chemical industry process control requirements and BOM list, design drawings.
Control mode:central control room upper hand/automatic control.

: Pneumatic valve control cabinet

: Valve terminal Control cabinet

Wuxi Aixun Automation Technology Co., Ltd. specializes in the production of solenoid valve boxes suitable for a variety of environments, with many years of design, production and commissioning experience, according to the different needs of customers for product functions to provide the corresponding high-quality products and professional services.

: Pharmaceutical factory automatic dosing equipment DCS control panel

Product name:Bacteria cultivation can of PLC automatic control panel
Industry:Biopharma industry
Product locationr:Shandong Province
Processing location:AiXun workshop
Drawing data:According to the process control requirements of automatic dosing equipment and BOM list, the drawing was designed by EPLAN software.
Control mode:Local hand/automatic control /DCS remote.

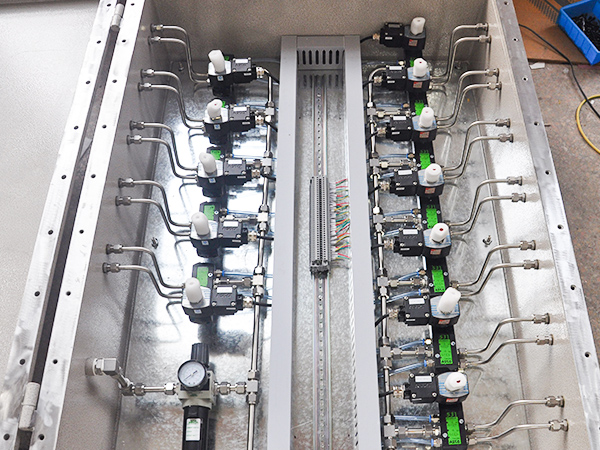

: 30 way ASCO explosion-proof solenoid valve double-layer integrated pneumatic control cabinet
